Please Note: TRFC offers several different types of rafts and frames. Lead times and availability of frames and rafts my vary. Feel free to contact the shop with any questions or reach out to TruckeeRaftFrame@gmail.com

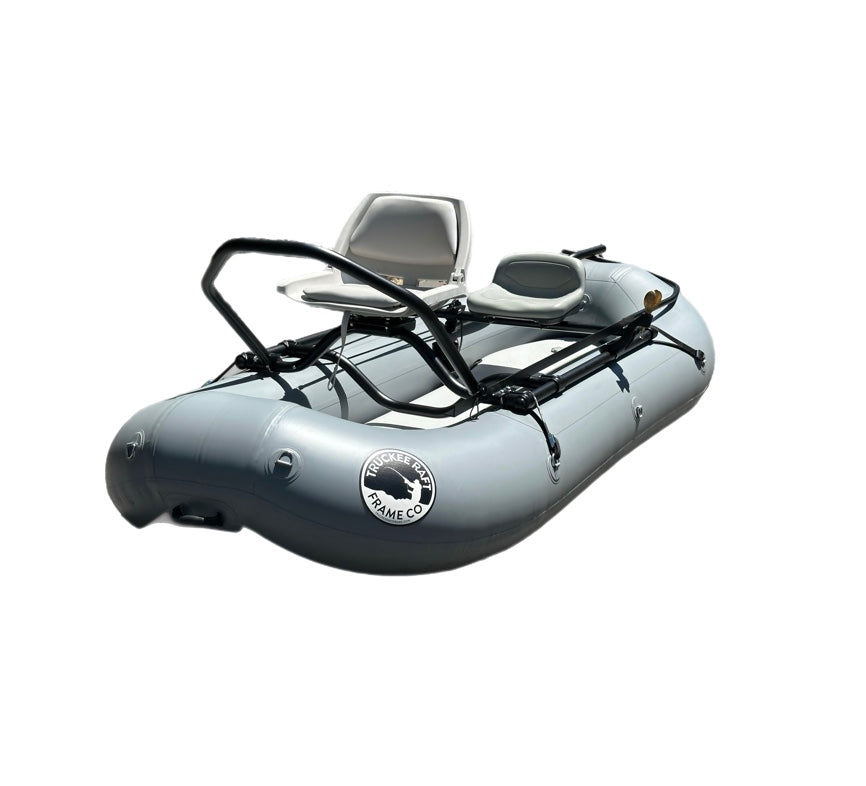

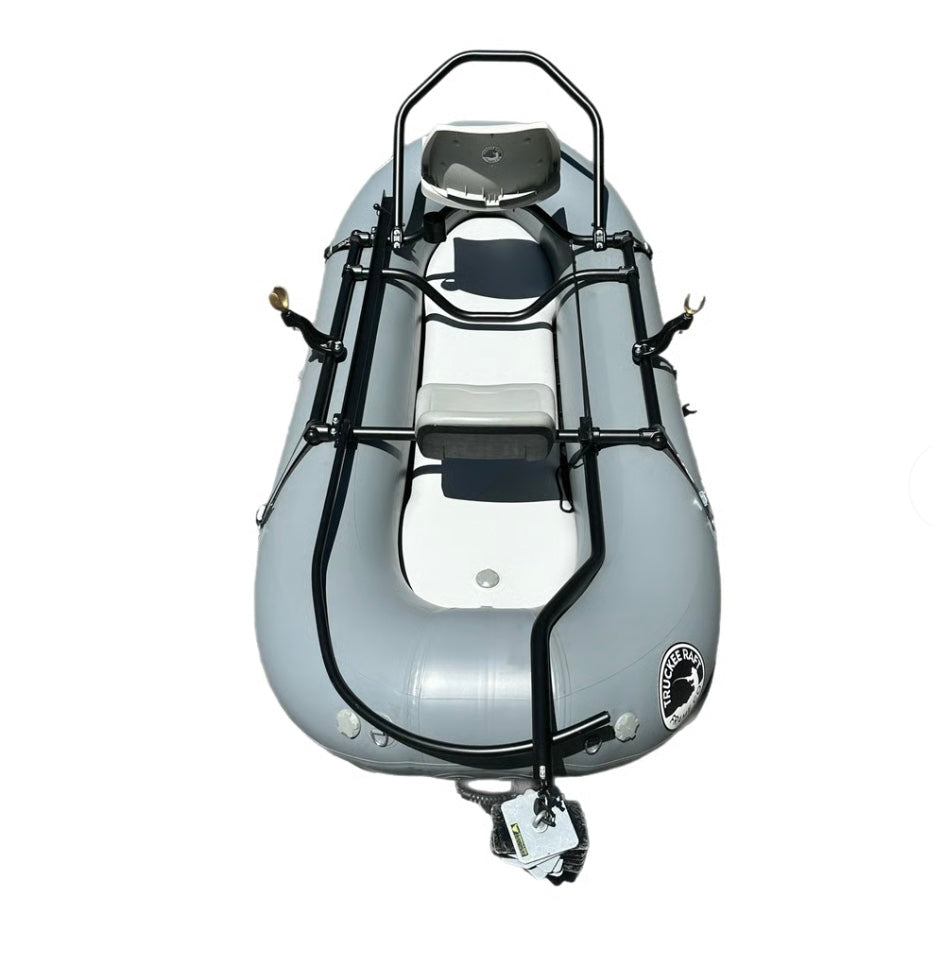

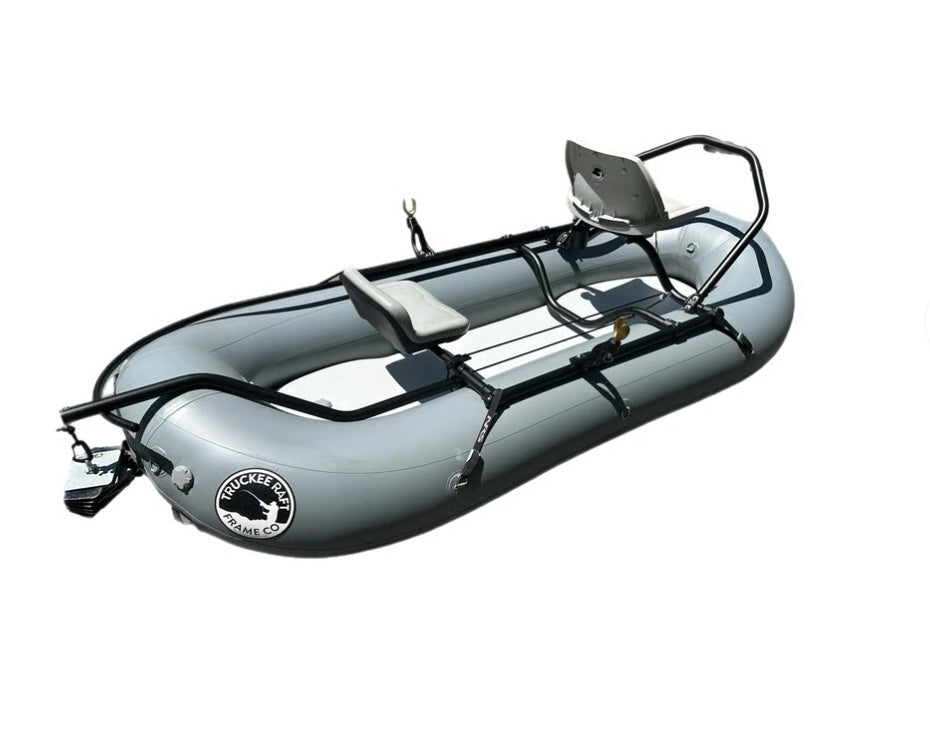

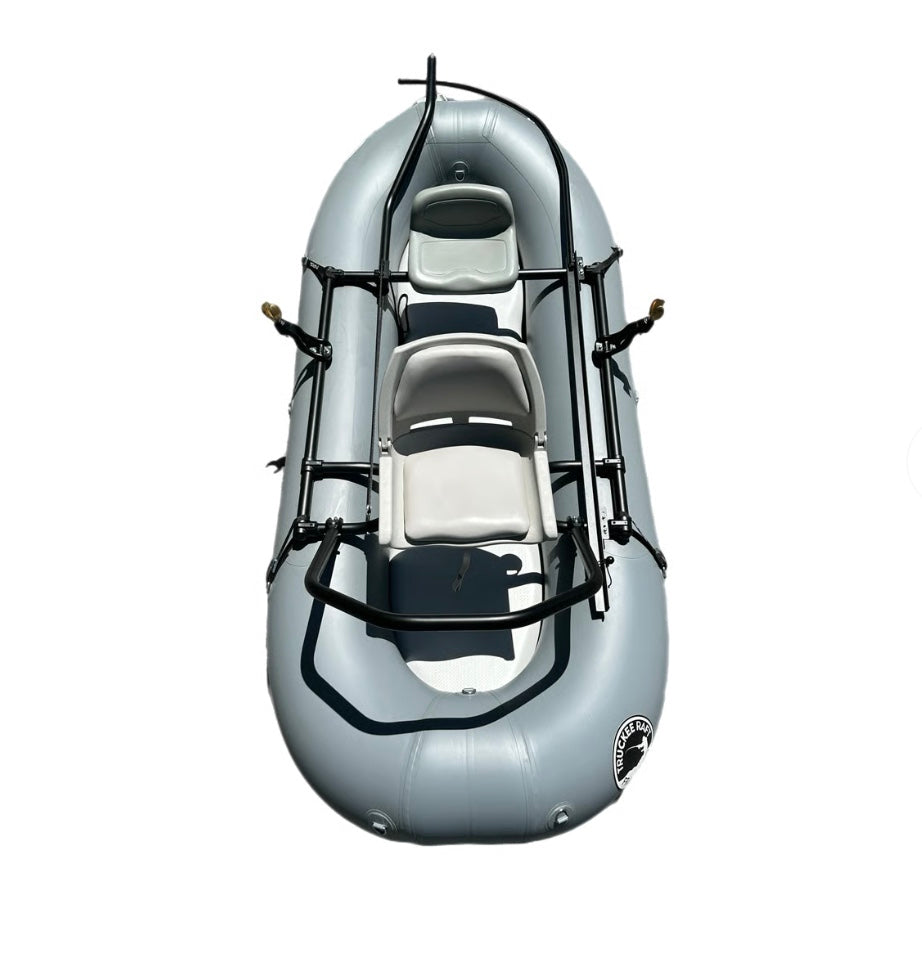

-The TRFC10.5 is a two angler fishing machine weighing an ultralight 93lbs. With the width and tube diameter to take on the rowdy stuff, the river is yours to explore only limited by your rower’s ability.

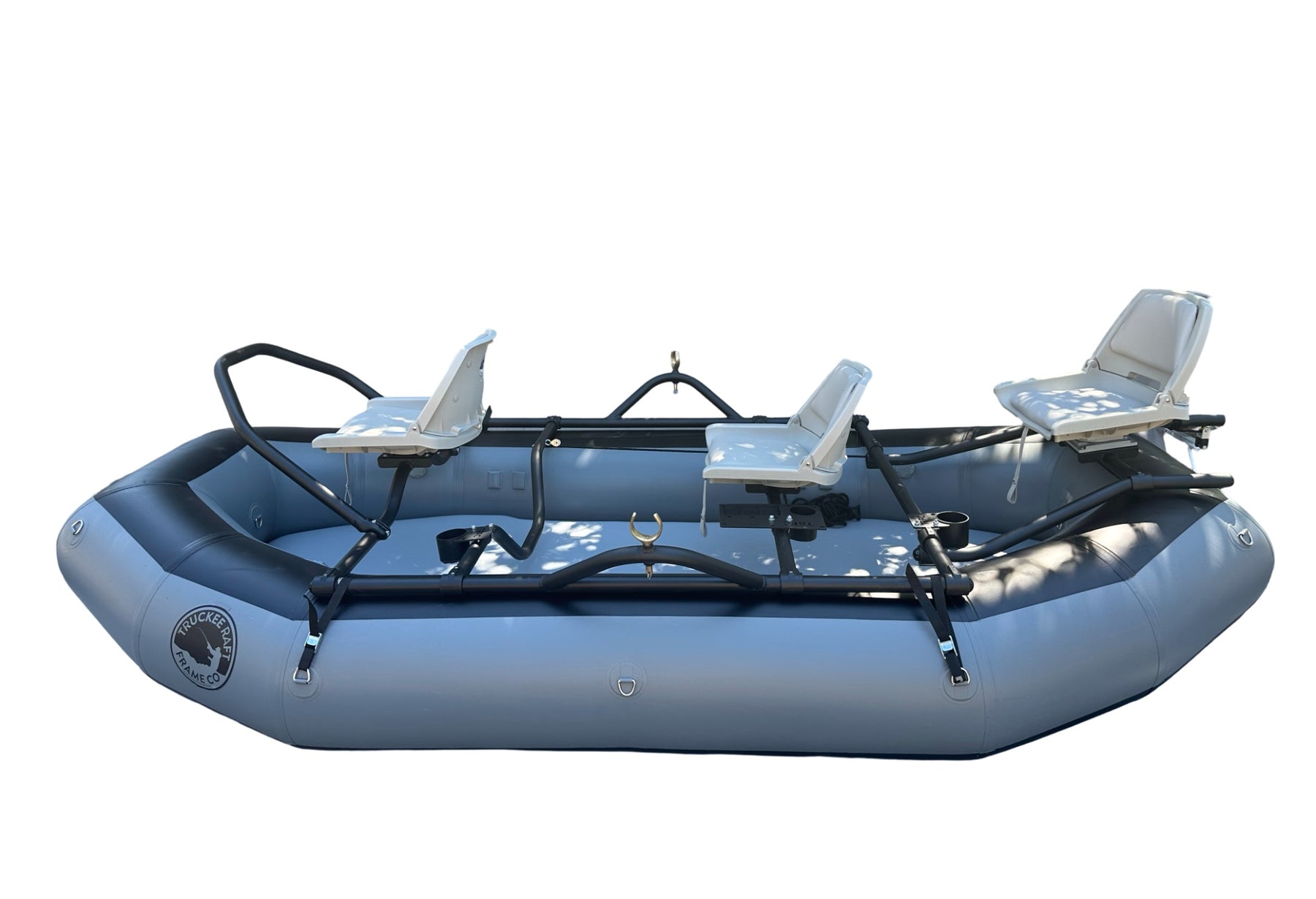

-The TRFC 12.0 is an compact 3 angler raft for low flows and tough put ins. The 12.0 features robust 20" tubes and 6" drop stitch floor. What is exciting about this raft is that the raft is designed with anglers in mind unlike most products that are designed as whitewater rafts. It has a lower bow kick which catches less wind and allows more interior space. It also will row better than a higher bowkick raft. It has plenty of stability and flotation for 3 anglers.
-The TRFC 13.0 has a little more space for more gear, overnight trips and all your junk. The 13.0 features robust 20" tubes, drop stitch floor and slightly more bow kick to handle heavier whitewater.
Send us an email to build your raft package. Current lead time 4-6 weeks to ship.
Shipping cost will be quoted with the order depending on raft choice and location.
Package Includes:
- Angler Frame
- Integrated anchor system
- Front Lean bar
- Sawyer SST shoal cut oars
- Oar Towers and oarlocks
- (10' rodholders sold separately $250/ea)

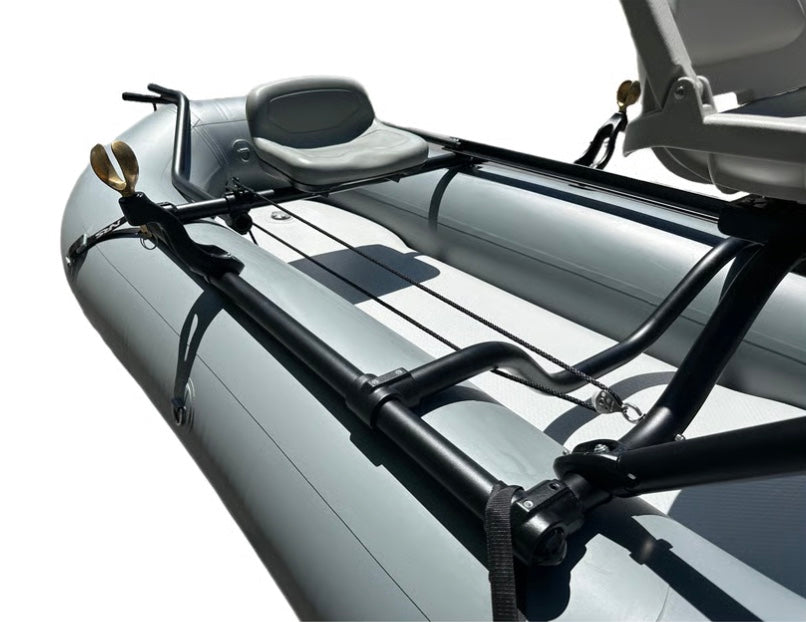

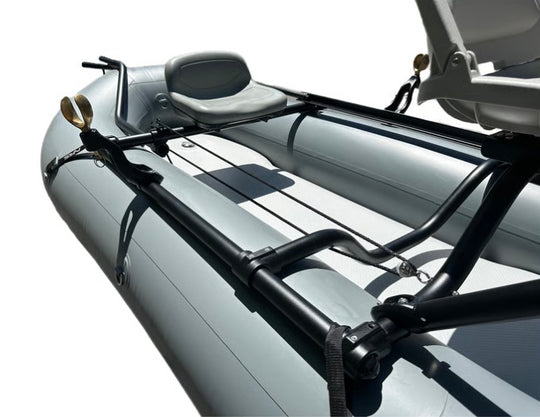

FRAME
• 1.66" OD Aluminum Powder Coated Frame with adjustable Hollaender fittings
• 44.5" wide x 108" long fully assembled. Main frame 48" long
• Removable full wrap lean bar
• Adjustable Kick bar for roof rack carry.
• Integrated anchor system
• Lowback Padded Rowers Seat
RAFT SPECS
• Maxxon XSB-320 (5 year Warranty) - (49lbs raft only weight)
• Heavy-Duty 0.9 mm 1100 Denier PVC
• Triple welded PVC seams for long-lasting durability
• 4" drop stitch floor for completely rigid casting platform surface.
• Leifield C7 valves
• Outside Length and Width: 10 ft 5 in x 4 ft 8 in (320 x 143 cm)
• Inside Length and Width: 7 ft 6 in x 21 in (230 x 53 cm)
• Tube Diameter: 18 in (45 cm)
• Air Chambers: 2 + floor
• Floor Thickness: 4 in (10 cm) Inflatable Drop-Stitch
• Top and Bottom Chafers: 0.9 mm 1100 Denier PVC
• Floor Wrap: 0.9 mm 1100 Denier PVC
• Stainless Steel D-Rings: 6
• Comfort-Grip Handles: 2
• Kick Height: 2 ft (61 cm)
• Rated Pressure for Tube: 3.6 psi/ 0.25 bar
• Rated Pressure for Floor: 6.5 psi/ 0.45 bar
• Max Load: 1,500 lb (680 kg)
• Additional Standard Equipment: Carry Bag, Foot Pump and Field Repair Kit
WARRANTIES
- Truckee Raft Frame Co Frame 4 year manufacturer defect warranty on frames
- Maxxon Infatable Boats 5-Year manufacturer defect warranty on the raft
- Sawyer Oars 1 year manufacturer defect warranty.
- Repairs/replacements can be provided at a reasonable cost.
